DIY GUIDE - INSTALLATION BINDINGS -
ATLAS SNOWSHOE HARNESS
- SPEED FIX serie EVOLUTIVE  -

DIY Guide – How to replace and upgrade your bindings - MSR snowshoe harnesses?

​

Discover the superior quality of Simard Sport, a Canadian specialist in replacement bindings.


Choose the universal SPEED FIX model, an enhanced version of the EVOLUTIVE series, 100% compatible with all MSR adult snowshoes, without exception. Our replacement harness repair kits combine durability, comfort, and performance, while offering a simple, fast, and reliable installation—ideal for extending the life of your snowshoes.

Modernize and refresh your snowshoes.
Designed for Quebec winter conditions, SPEED FIX bindings provide a secure hold, controlled flexibility, and help prolong the lifespan of your snowshoes.

​

Universal MSR Compatibility

The SPEED FIX binding universal – EVOLUTIVE series offers total compatibility (100%), without exception.
It is designed for all sizes and all MSR snowshoe models for women and men, confirming its universal fit, including: EVO, REVO, Lightning, Trail, Ascent, Explore, Denali, and Classic.

​

Installation Guide (DIY)

This guide explains, step by step, how to safely and efficiently remove rivets and replace individual components without damaging surrounding parts. Before any repair, it is essential to understand the correct method for rivet removal.
If the installation seems complex, professional installation in a workshop is recommended. Basic repair skills and proper tool handling are required. Always work in a clear, well-lit area, and remember that safety must remain the top priority.

​

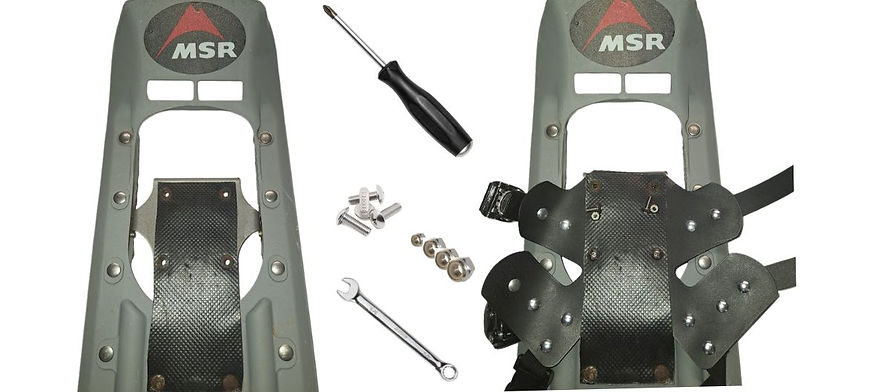

Before & After

Please read all steps carefully before installation.

For best results, consult our blog articles on snowshoe maintenance and prevention.

MSR snowshoe bindings installation for Lightning, EVO, Denali, Revo, Trail, Ascent and Explore models showing DIY replacement of the harness and strap system at Simard Sport Canada.
MSR Harness Repair – Step-by-step view of fixing and adjusting snowshoe bindings using replacement parts.

Begin the simple and safe MSR installation steps

Snowshoe Strap and Attachment Replacement – Professional installation of MSR binding components in Laval workshop.
List of Required Tools and Materials

  • -Electric or cordless drill

  • -3/8" in. ou 1/4 drill bit

  • -Loop pliers or multi-grip pliers

  • - Riveter or Phillips screwdriver for final assembly

  • -Flathead and Phillips screwdrivers

  • -Abrasive paper

  • -X-Acto & Scissors

  • -Protective glasses to prevent metal splashes

  • -Sturdy work gloves

  • -Cutting lubricant

  • -Clean cloth

  • -Stable work surface

  • -Garbage can

Before you begin, make sure you are working in a well-lit, stable and safe space

​

Step by Step

A) Removing the pins

  • Place the racket firmly on a protected surface.



  • Operate from underneath the racket.



  • Tools needed: Small flathead screwdriver and long-nose pliers



  • Remove 4 clevis pins, rings and washers.



  • Remove the metal plate

msr guide- diy-raquette a neige reparation-simard-sport.jpg
installation-binding-msr-snowshoes-canada (1).jpg

B) Configuration and assembly – Base MSR

Whether or not to keep the sole of your old binding depends on its condition and/or your MSR snowshoe model configuration; keeping it is not mandatory.

​

  • With sole preserved: Remove the 4 MSR front rivets, cut the sole (the bottom) of the harness along the plate and slide the new fastener in from the front, between the existing sole and the metal plate.

  • Without the sole: remove the 6 rivets MSR.

  • See the following illustrations for more.

assembly-configurations-bindings-msr (1).jpg

C) Removal of rivets according to your chosen configuration​

  • Operate from the underside of the plate.

  • Identify the central hole of the rivet.

  • Secure the rivet head using locking pliers to prevent any rotation.

  • Lubricate the rivet’s central hole, then drill at low speed with steady pressure.

  • Monitor the risk of metal overheating during drilling.

  • After drilling the rivet, remove the pin.

  • Thoroughly clean any metal residues (metal filings).

Professional (high-quality) advice

  • Stability: it's best to have one hand on the drill and a good grip on the vise grips.

  • Check: if the rivet starts to turn immediately, stop, tighten the vise grips, then resume.

  • Final cleanup: remove all metal shavings before proceeding with the installation of the new parts.

PROCEDURE TO FOLLOW

Detailed DIY guide for installing and repairing MSR snowshoes, including safe rivet removal, binding replacement, and component maintenance
DIY guide installation MSR binding replacement kit, designed for EVO, REVO, Lightning, Denali, Ascent, and Trail

PROCEDURE TO FOLLOW

MSR — replacement parts for snowshoe bindings Installation guide, harnesses. Shipping across Canada

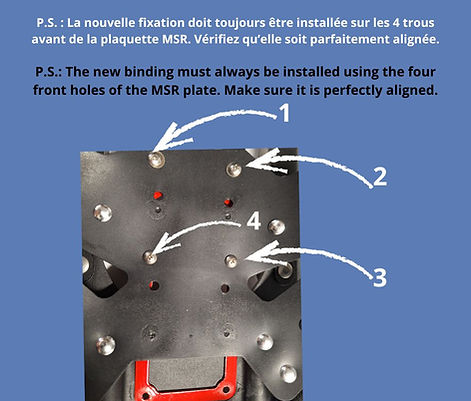

D - If you keep the sole of the old binding

  • Remove only the four front rivets.

  • Cut the footbed (base) of the existing MSR harness along both sides of the crampon plate.

  • See illustrations.

  • Slide the new binding in from the front, between the existing footbed and the metal crampon plate.

Premium MSR Replacement Parts – Visual guide showing new harness and strap installation DIY on MSR snowshoes.

E – Front assembly​

  • Insert the two bolts, along with their washers, through the top face of the sole.

  • Slide the new SPEED FIX attachment onto the metal plate (cleats).

  • Position and secure the toe stopper between the new fastener and the metal plate.

  • Complete this initial assembly without fully tightening the 2 bolts, 2 washers, and 2 nuts at the front.

DIY MSR binding replacement kit, designed for EVO, REVO, Lightning, Denali, Ascent, and Trail

F – Assembly of the center

Two configurations are available depending on your model: wide or narrow opening. Please carefully select the correct kit for attaching the harness to the two center holes. Both options are easy to install (see illustrations).

  • Installation with rivets to be hammered in, with washers placed on top of the sole.

  • Or

  • Installation with bolts and nuts , with washers positioned on top of the base.

​

  • Now you can tighten the bolts at the front.

  • Important: Always place the washers on top of the sole and avoid overtightening so as not to crush or weaken the flexible materials.

reparation-raquette-neige-remplacement-msr-installation (6).jpg
reparation-raquette-neige-remplacement-msr-installation (5).jpg
assembly-configurations-bindings-msr (1).jpg

2 Solutions for Replacing Your MSR Rivets

Option 1 – Tubular metal rivets

🔩 Description: This original model ensures strength equivalent to that of the factory.

🛠️ Installation: Installs using an industrial riveter for a durable hold.



Option 2 – Stainless steel bolts and self-locking nuts + Tap-in rivets + Washers

🔩 SimardSport: A simple, quick and durable alternative, compatible with all brands of snowshoes.

🛠️ Installation: Installs using a screwdriver, a wrench (or pliers) +

+ Hammer-in rivets & washers: installed using a hammer

​​

-Do not overtighten to avoid crushing the materials.

rivet parts replacement snowshoes msr lighning evo revosimard-sport.
msr instruction guide installation repair assembling finxing binding snowshoes

G- Final Step

  • Align the 2 holes in the metal plate with the 2 holes in the metal rails

​

  • Reassemble the 4 clevis pins, rings and washers.

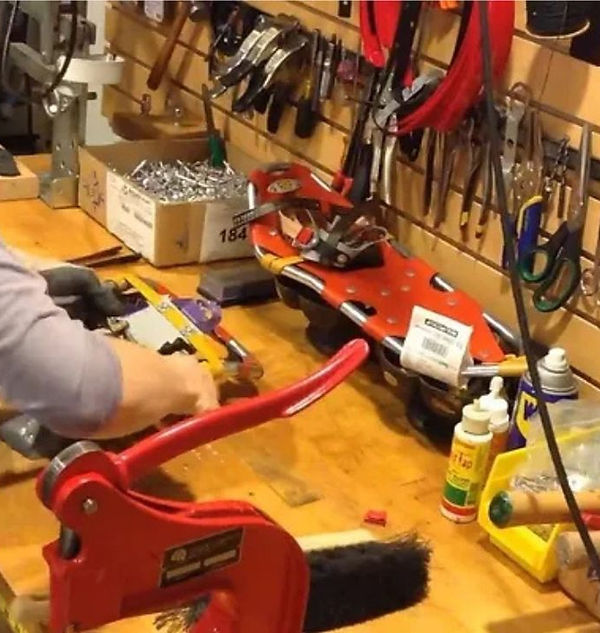

Professional MSR Binding Installation – Simard Sport Laval technician fitting new harness and strap parts.

​If these steps seem complex, entrust the installation to our ProShop workshop in Laval (Quebec) for a reliable, safe and durable result.
Thanks to our specialized tools and recognized expertise, you benefit from a professional service that extends the life of your MSR snowshoes while optimizing your performance on the trails.
💰Installation fee: $50 per pair.​

Important: Read carefully the blog posts on snowshoe maintenance instructions and precautions for use.
